Stainless steel flat bars are rectangular steel with a slight pure edge. Stainless steel flat bars can be semi-finished steel. There are cold drawn polished stainless steel flat steel and hot rolled acid white sandblasted stainless steel flat steel. Stainless steel flat bars are used in construction projects such as bridges, house frames, fences, power transmission vessels, vehicles, etc. Stainless steel flat steel raw material billet for low carbon square steel billet finished stainless steel flat steel for hot-rolled forming, cold-rolled or hot-rolled state delivery.
316 stainless steel (UNS 31600) is an austenitic chromium-nickel stainless steel containing molybdenum. This addition improves corrosion resistance, increases resistance to pitting chloride ion solutions, and provides increased strength at elevated temperatures. The molybdenum in 316 makes it a better choice than 304 in corrosive environments. Common applications for this alloy include food prep equipment, laboratory equipment, heat exchangers, marine fittings, condensers, water tanks, and evaporators. It is commonly used in the food, beverage, pharmaceutical, textile, marine, and construction industries.

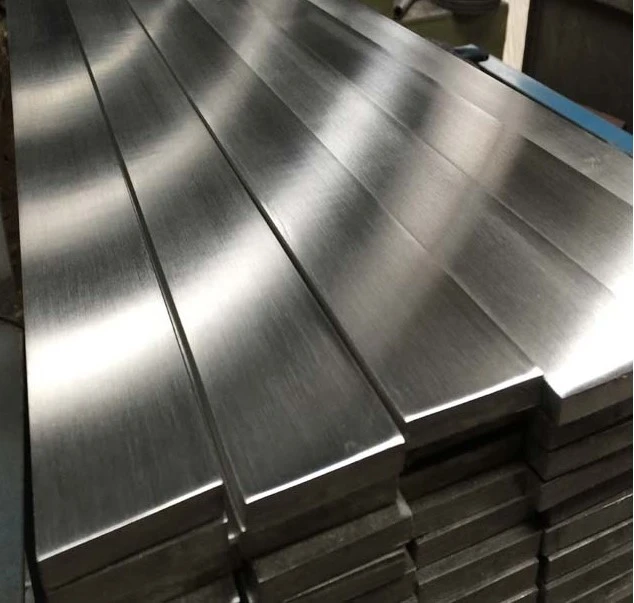

Specifications of 316 Stainless Steel Flat Bar
Specifications: ASTM A240/ASME SA240, ASTM A276/ASME SA276
Standards: ASTM, AISI, DIN, EN, GB, JIS
Material: SS 316
Thickness: 8mm-50mm
Width: 150mm-625mm
Length: 2m-12m
Technique: Cold Drawn, Cold Rolled, Hot Rolled, Forged
Surface: Black, BA, Polished, No.1, etc.
Payment Terms: T/T, L/C
Delivery Time: As per quantity required
Chemical Composition (%) of 316 Stainless Steel Flat Bar
|
C, max |
Si, max |
Mn, max |
P, max |
S, max |
Cr |
Ni |
Mo |
|
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
Mechanical Properties of 316 Stainless Steel Flat Bar
|
Ultimate Tensile Strength, Ksi [MPa], min |
Yield Strength, Ksi [MPa], min |
Elongation (%), min |
Hardness Brinell |
|
75 [515] |
30 [205] |
40 |
160 |
Physical Properties of 316 Stainless Steel Flat Bar
|
Density |
Melting Point |
Elasticity |
|
0.289 lb/in3 |
2500-2550℉ |
28 ksi |
Equivalent Grades of 316 Stainless Steel Flat Bar
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
SS 316 |
1.4401/1.4436 |
S31600 |
SUS 316 |
316S31/316S33 |
- |
Z7CND17-11-02 |
X5CrNiMo17-12-2/ X3CrNiMo17-13-3 |
Features of 316 Stainless Steel Flat Bar
- Good welding
- Good machining
- Good forming
- Excellent corrosion resistance
Application of 316 Stainless Steel Flat Bar
Used in food processing, pharmaceutical manufacturing equipment, photographic equipment, nuclear reactor components, and marine environmental applications.
